Aria SOHO Door Phone Installation
LG-Ericsson Aria SOHO door phone feature can be used on it’s 2 relays which means you can have maximum of 2 door phones. Here is a sample howto.

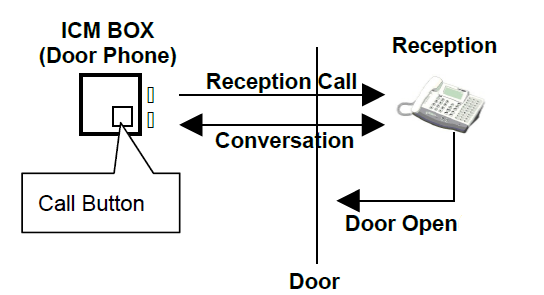

Aria SOHO Door Phone
A convenient intercom box can be connected to the system. The intercom box can receive page announcements and intercom calls. And the intercom box can signal assigned stations in the system. Any combination of DKTUs or intercom boxes can be arranged in the system.
To call an intercom box
Lift the handset or press the [MON] button.
Dial station number of intercom box or press the flexible button for the intercom box.
After warning tone, announce the call.
To place a call from an intercom box
Press the [CALL] button and assigned station will ring.
To answer an intercom call at a station assigned for intercom box signals
At DKTU : Press flexible button for intercom box.
At SLT : Off Hook.
To place intercom box to DND mode
Press the [DND] button.
Condition
- While hearing music at intercom box, press the [DND] button to stop the music.
- intercom Box cannot attend a conference(see Ref.2)
- The CO call is not received at intercom box.
- An intercom box can be a member of page zone group(see Ref.3)
- To receive intercom box call at SLT, set intercom Box Signaling value to ON (ADMIN program 111–FLEX 6). If Nation code is TELKOM or ISRAEL, DSS button for ICM Box should be assigned to SLT (ADMIN program 115)
- SLT can receive only one call from intercom box.
Admin Programming
- ICM Box Signaling 4.1.2.6 (PGM 111 – FLEX 6)
- Station ID Assignment 4.1.1 (PGM 110)
- ICM Box Music Channel 4.4.12.3 (PGM 171 – FLEX 3)
- ICM Box Timer 4.5.2.6 (PGM 181 – FLEX 6)
Open Door
Dial the door open code, or press the programmed {DOOR OPEN} button.
To Registered Door Open
[TRANS/PGM] + FLEX button(to be assigned) + #*1 (1st Door open) + [HOLD/SAVE]
